Point series: Is it possible to join the points with a line?

[TonyVSUK]

Point series: Is it possible to join the points with a line?

I cannot seem to find a way to do it (but am sure it must be possible).

Tony.

[Narcís]

Hi Tony,

No, you should us a line series and make pointers visible:

Code: Select all

TChart1.Series(0).asLine.Pointer.Visible = True

[TonyVSUK]

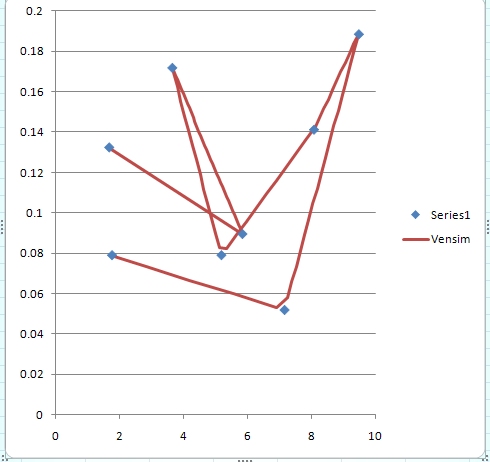

I tried that. What I'm trying to show is a kind of flight plan, similar to the attached image.

[Narcís]

Hi Tony,

In that case you should use line series with visible pointers and set XValues.Order to none before populating values. By default it's set to ascending.

[TonyVSUK]

I think I've figured out how to set the order.

I've been using AddXY with the line series, should I be using a different function?

The code for testing I have is below. It adds two series, one point, one line. The resultant graph should be identical to the Excel one.

Tony.


TChart1.AddSeries scPoint
TChart1.AddSeries scLine

TChart1.Series(0).Title = "Point Series"
TChart1.Series(1).Title = "Line Series"

TChart1.Series(0).Color = RGB(255, 0, 0)
TChart1.Series(1).Color = RGB(0, 0, 255)

TChart1.Series(0).AddXY 1.66667, 0.132456, "", RGB(255, 0, 0)
TChart1.Series(0).AddXY 5.83333, 0.0894737, "", RGB(255, 0, 0)
TChart1.Series(0).AddXY 3.64035, 0.17193, "", RGB(255, 0, 0)
TChart1.Series(0).AddXY 5.17544, 0.0789474, "", RGB(255, 0, 0)
TChart1.Series(0).AddXY 8.07018, 0.141228, "", RGB(255, 0, 0)
TChart1.Series(0).AddXY 9.47368, 0.188596, "", RGB(255, 0, 0)
TChart1.Series(0).AddXY 7.14912, 0.0517544, "", RGB(255, 0, 0)
TChart1.Series(0).AddXY 1.75439, 0.0789474, "", RGB(255, 0, 0)

TChart1.Series(1).YValues.Order = loNone

TChart1.Series(1).AddXY 1.66667, 0.132456, "", RGB(0, 0, 255)
TChart1.Series(1).AddXY 5.83333, 0.0894737, "", RGB(0, 0, 255)
TChart1.Series(1).AddXY 3.64035, 0.17193, "", RGB(0, 0, 255)
TChart1.Series(1).AddXY 5.17544, 0.0789474, "", RGB(0, 0, 255)
TChart1.Series(1).AddXY 8.07018, 0.141228, "", RGB(0, 0, 255)
TChart1.Series(1).AddXY 9.47368, 0.188596, "", RGB(0, 0, 255)
TChart1.Series(1).AddXY 7.14912, 0.0517544, "", RGB(0, 0, 255)
TChart1.Series(1).AddXY 1.75439, 0.0789474, "", RGB(0, 0, 255)

[TonyVSUK]

Got it working now. Many thanks. I just needed to set the order to none on both X and Y.

Tony.



TChart1.Series(1).YValues.Order = loNone
TChart1.Series(1).XValues.Order = loNone

[Narcís]

Hi Tony,

You're welcome. It's not necessary setting YValues.Order as by default it's none already.
