Posted: **Fri Jul 15, 2016 5:26 am**

Hi steema support,

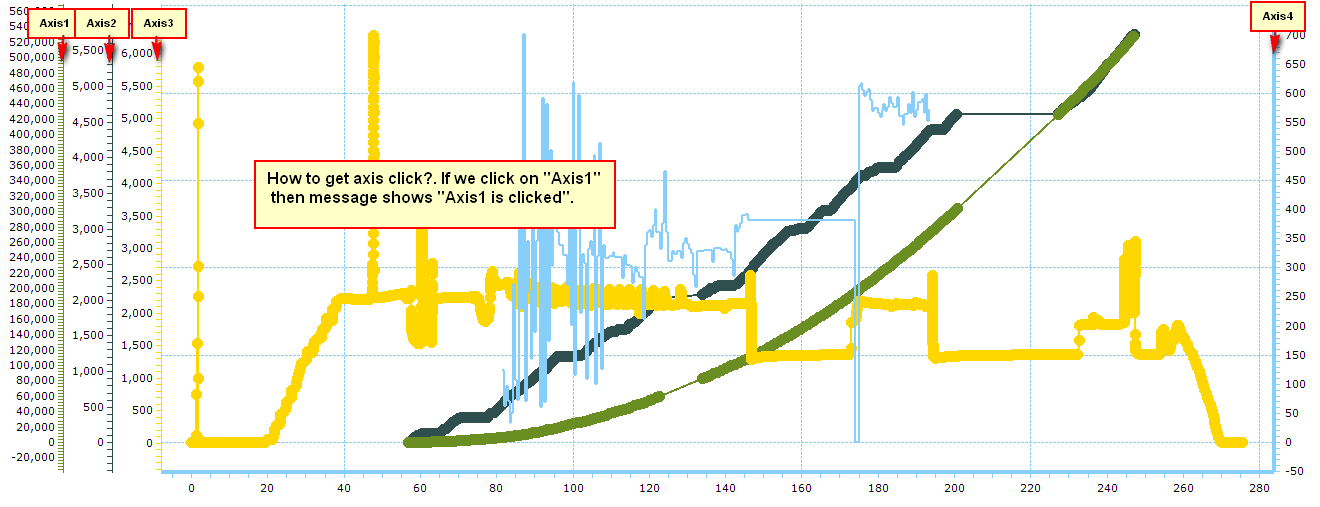

We have one regarding how to get axis click or double click on Multiple Custom axis as shown in attached image.
In this i have four custom axis and i want to get that particular axis when i click or double click on axis.

: custom multiple axis.; Custom multiple Axis.png (31.62 KiB) Viewed 6512 times

Kindly suggest any solution asap.
Thanks in advance.

Posted: **Fri Jul 15, 2016 8:51 am**

Hello!

Yes, you should be able to use code such as this:

Code: Select all

    private void InitializeChart()
    {
      Line line1 = new Line(tChart1.Chart);
      Line line2 = new Line(tChart1.Chart);

      Axis axis = tChart1.Axes.Custom.Add();
      axis.RelativePosition = 20;
      line2.CustomVertAxis = axis;

      line1.FillSampleValues();
      line2.FillSampleValues();

      tChart1.ClickAxis += TChart1_ClickAxis;
    }

    private void TChart1_ClickAxis(object sender, MouseEventArgs e)
    {
      Axis axis = sender as Axis;
      string message = "";

      int custIndex = tChart1.Axes.Custom.IndexOf(axis);

      if (custIndex > -1)
      {
        message = "Custom Axis " + custIndex.ToString();
      }
      else
      {
        if(tChart1.Axes.Left.Equals(axis))
        {
          message = "Left Axis";
        }
        else if(tChart1.Axes.Bottom.Equals(axis))
        {
          message = "Bottom Axis";
        }
      }

      MessageBox.Show(message);
    }
