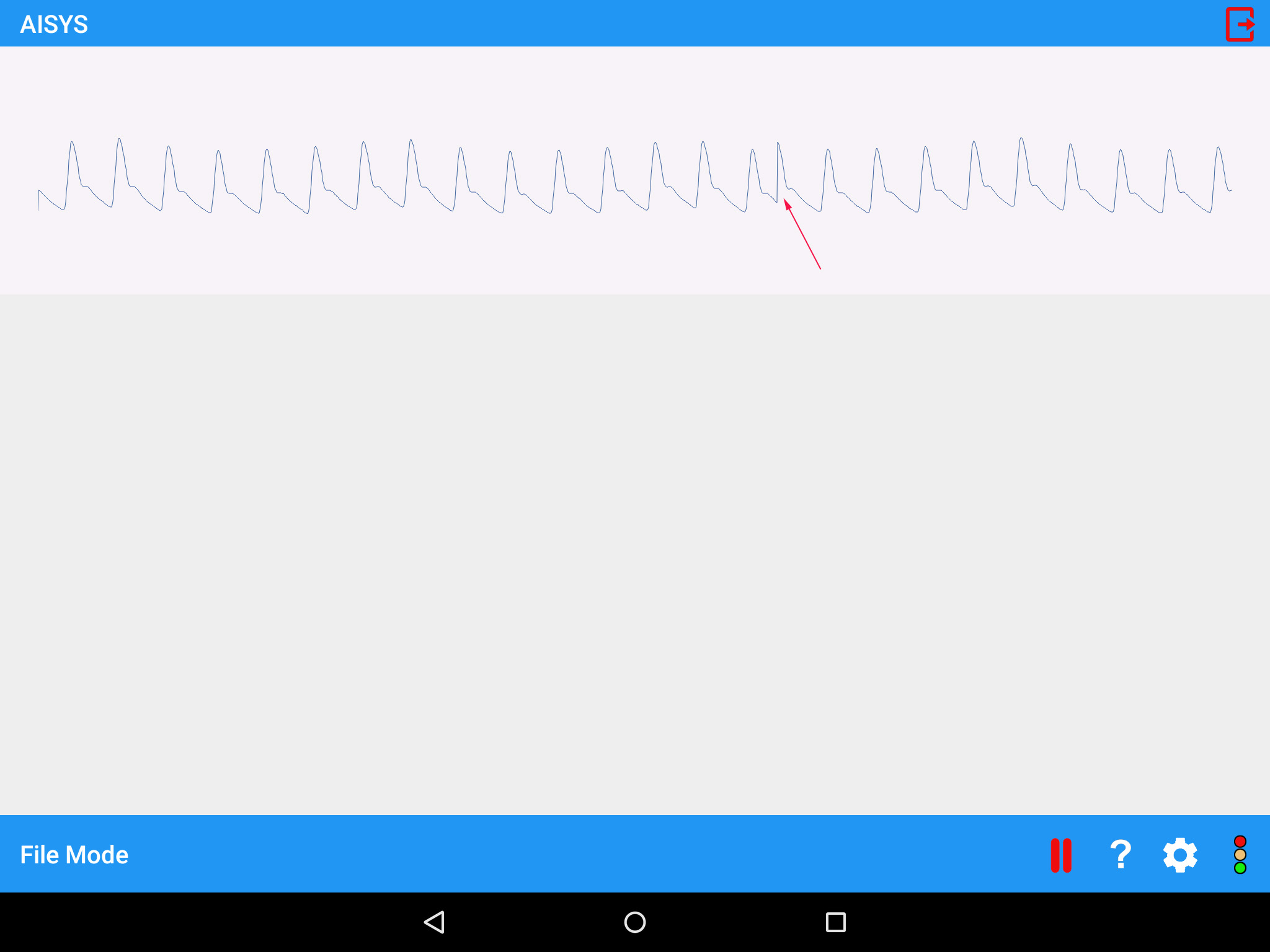

- Screenshot.jpg (138.96 KiB) Viewed 5114 times
The solution (which was recommended by you) works very well in regular Dot.Net, but does not work when running under Xamarin.Android. (As shown in the screenshot above, a line is drawn between the two relevant data points (Arrowed in red))
The problem seems to be that "chart.Series[0][PressureGraphCursor + 1].Color = System.Drawing.Color.Transparent;" is ignored.
Can you suggest a solution?
Many thanks,
Andy Pybus
The working (PC) version is:
private void UpdateGraphs()
{
short val;
if (Pressure_Data.TryDequeue(out val)) //If data points are available...
{
//PRESSURE GRAPH
if (InputPressure.Count > PressureGraph.Axes.Bottom.Maximum) //If we've accumulated at least 1 scan...
{
InputPressure[PressureGraphCursor].Y = val * VARIABLESCALEFACTOR;
InputPressure[PressureGraphCursor].Color = InputPressure.Color;
InputPressure[PressureGraphCursor + 1].Color = Color.Transparent;
}
else
{
InputPressure.Add(val * VARIABLESCALEFACTOR);
}
PressureGraphCursor++;
PressureGraphCursor = (PressureGraphCursor < PressureGraph.Axes.Bottom.Maximum) ? PressureGraphCursor : 0;
}
if ((PressureGraphCursor % SIGNALFREQUENCY == 0) && (Mode == OpMode.File) && (PlotTimer.IsRunning)) GetNextDORecord();
//FFT GRAPH
if (FftGraphIsAvailable) DisplayCurrentFFT();
}
The Xamarin.android version is:
void UpdateGraphs(Steema.TeeChart.TChart chart)
{
chart.AutoRepaint = false;
short val;
if (Pressure_Data.TryDequeue(out val)) //If data points are available...
{
//PRESSURE GRAPH
if (chart.Series[0].Count > PressureGraph.Axes.Bottom.Maximum) //If we've accumulated at least 1 scan...
{
chart.Series[0][PressureGraphCursor].Y = val * VARIABLESCALEFACTOR;
chart.Series[0][PressureGraphCursor].Color = chart.Series[0].Color;
chart.Series[0][PressureGraphCursor + 1].Color = System.Drawing.Color.Transparent;
}
else
{
chart.Series[0].Add(val * VARIABLESCALEFACTOR);
}
PressureGraphCursor++;
PressureGraphCursor = (PressureGraphCursor < PressureGraph.Axes.Bottom.Maximum) ? PressureGraphCursor : 0;
}
chart.AutoRepaint = true;
chart.Chart.Invalidate();
}
