Steema exception when trying to change a chart series

[Paul]

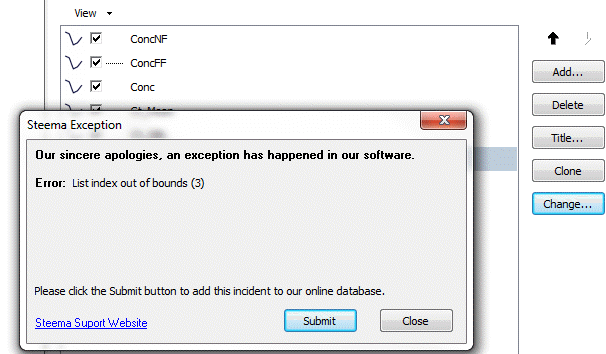

Without warning I can no longer no longer change the type for a chart series. I right click on a chart and select "Edit Chart". I then select a series and click on "Change". At this point I get a "Steema Exception" form stating

"Our sincere apologies, an exception has happened ........ Err: List index out of bounds (3)".

Several weeks ago I upgraded TeeChart Pro and installed "v2014.11.140512 32bit VCL". This is a mature project that I have been working on for over a year without any chart issues. (I also have TMS Component Set and RichView installed.) But this also occurs when I add a chart to the main form of a new project.

Any ideas? I am desperate as I am demonstrating the software to my client next week.

Paul

[cfh@dhi]

I am experiencing exactly the same problem!

It can be reproduced in a 1 form + 1 tchart project...

Any ideas on how to solve this?

Thanks in advance
Christian, DHI

[Yeray]

Hello,

This was identified here.
As Narcís said in the public tracker B753, we can send a test version to the source code customers asking for it.

[cfh@dhi]

Ok thanks - didn't now it was identified...

Anyway found a fix - so I dont need to install new stuff... (if you have the source)

In the "VCLTee.TeeGally" unit make sure the selected tabsheet for TabTypes is "Series" - shown in attachment, then it Works...

Regards
Christian, DHI

[Paul]

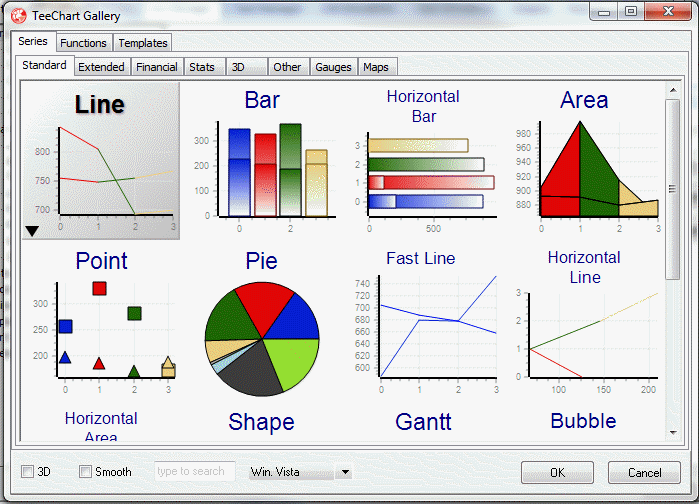

I made sure that the Series tab was selected (I clicked on Add series to do this), but I still get the same error. See attached gifs.

This seems like a major major issue that should be fixed immediately and a new build offered to paying clients. I have now lost all ability to change the type for a series.

Paul

TeeChart change series error.gif (35.39 KiB) Viewed 9487 times


[Yeray]

Hi Paul,

I made sure that the Series tab was selected (I clicked on Add series to do this), but I still get the same error. See attached gifs.

I assume the workaround Christian suggested was to be applied on the sources, not on the binary version.

This seems like a major major issue that should be fixed immediately and a new build offered to paying clients. I have now lost all ability to change the type for a series.

Please, tell us what IDE are you using and we'll try to prepare a test installer for you.

[Paul]

I am using Rad XE.

[Yeray]

Hi Paul,

We are uploading the v2014.12 installers and we'll publish them asap.
