GDI+, sub charts and blurry lines

[Richard]

when I create sub chart they always use the ugly gdi+ canvas, with the anti alias making the lines fat and blurry. Can I turn off the anti alias, or reset the sub chart to the gdi?

The axis line go from a clear black single pixel wide line to about 3 pixel wide grey blur.

I have set the option for new charts to be GDI - but it does not seem to effect the sub charts

Thanks for any help you can give

Richard

[Yeray]

Hi Richard,

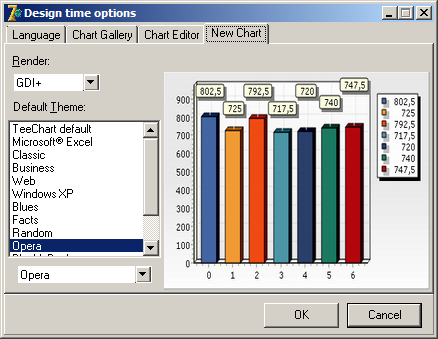

That's strange. By default, with GDI+ selected (as per default) as "Render" option at the "New Chart" tab in the "Options..." dialog opened from the contextual menu at design time:

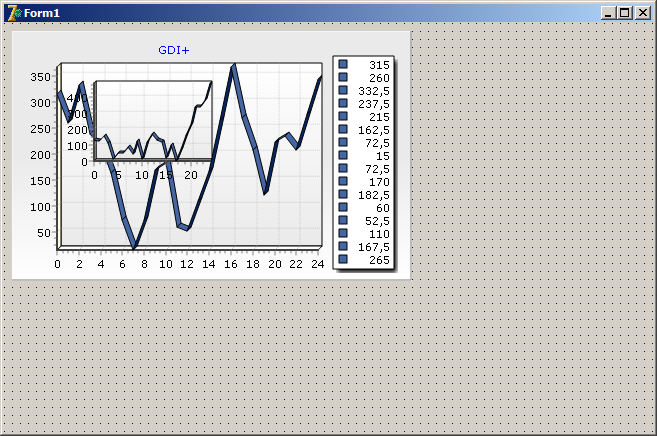

I get GDI+ Charts, both at the parent chart and at the subchart:

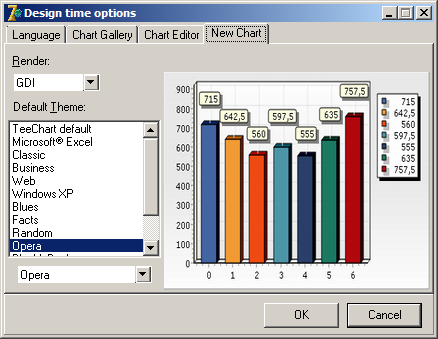

However, if I open again the options dialog and select GDI as "Render" option at the "New Chart" tab, still at design time:

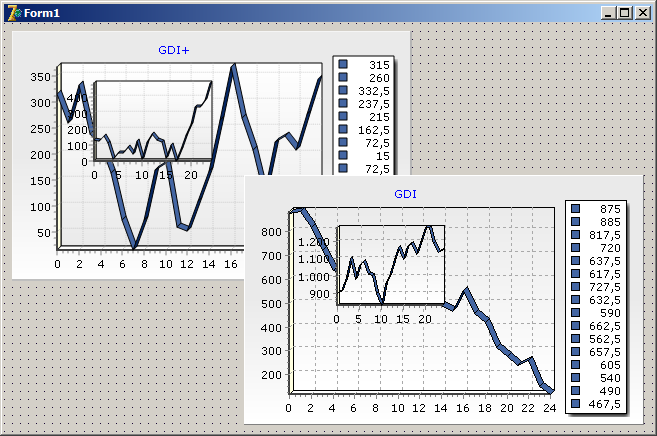

And I drop another chart to the same form, I see GDI in both the chart and the subchart:


[Richard]

why is the GDI+ rendering so poor? it is always blurry - even if I take of the anti alias - thing like the points are blurry as are the tick marks - is this something in your control? Can I disable GDI+ completely?

I have a large number of small points to show - it looks poor even on my 23 inch monitor and even worse on a laptop!

[Yeray]

Hi Richard,

why is the GDI+ rendering so poor? it is always blurry - even if I take of the anti alias - thing like the points are blurry as are the tick marks -

Antialias has some controversy. Some may find it give smoother lines and curves, while some may find it's blurry.

is this something in your control? Can I disable GDI+ completely?

You should be able to go back to GDI as mentioned above.
Alternatively, you can force it at runtime with:

Code: Select all

uses Series, TeCanvas;

procedure TForm1.FormCreate(Sender: TObject);
begin
  Chart1.Canvas:=TTeeCanvas3D.Create;
end;
