Taguge

[Friis]

Hi,

How do I change the increment size in this TGauge?


I have tried but it doesn't work:

Code: Select all

Chart1.Axes.Left.Increment := 50;

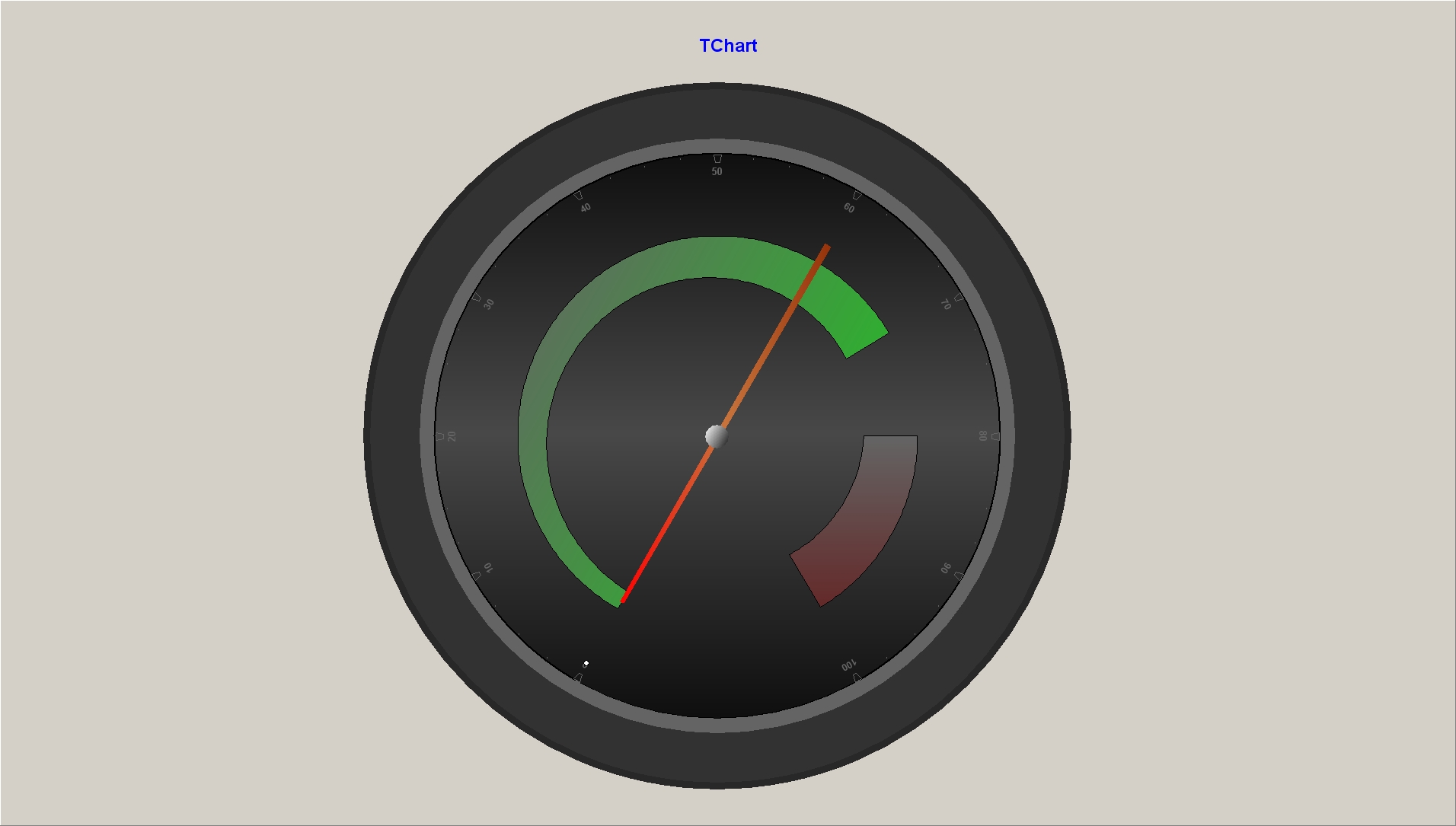

How do I change the size of the green and red colors in the interior of the Gauge?? I have marked the red area which I would like to change the apperance of...


[Friis]

How do I change the color of the white dot indicating the value of the Gauge ??

[Friis]

How do I change the color of the red and gree areas?

[Yeray]

Hi Friis,

The following seems to work fine for me here:

Code: Select all

uses TeeCircularGauge;

procedure TForm1.FormCreate(Sender: TObject);
begin
  with Chart1.AddSeries(TCircularGauge) as TCircularGauge do
  begin
    Axis.Increment:=5;
    EndPoint.Color:=clRed;

    GreenLine.Gradient.Visible:=false;
    GreenLine.Color:=clYellow;

    RedLine.Gradient.StartColor:=clYellow;
    RedLine.Gradient.EndColor:=clMaroon;
  end;
end;
