THighLow & Smoothing

[Karsten]

Is there an option to get a highlow bar with smoothed low and smooth high curve automatically without adding more points??

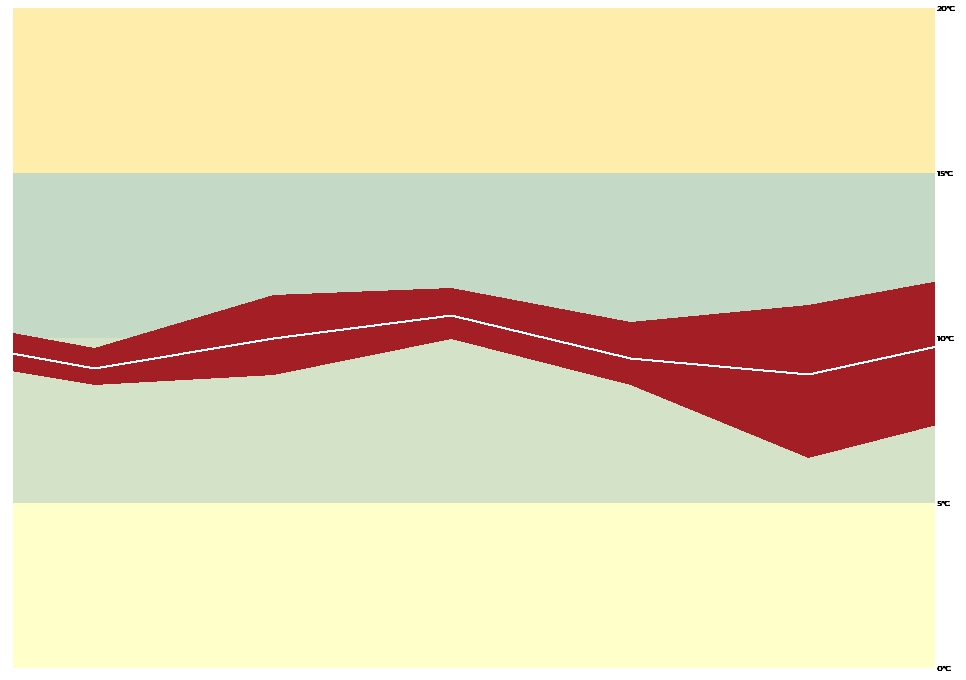

Right now the dark red highlow it's not smooth at all (see example)


Cheers
Karsten

BCB5 & TChart 8.04 VCL

[Sandra]

Hello Karsten,

Sorry for the delay. I recommend three options for solve your problem:

• - Using GDI+ canvas, you can find an example in Demo of TeeChartVCL, concretely in Canvas/GDI+Canvas.
  - Using AntiAlias canvas, you find an example in Demo Canavas/AntiAlias
  - Using Tool Anti-Alias. There is an example to Tools/AntiAlias Filter in Demo Project of TeeCharVCL

I hope will helps.

Thanks,

[Yeray]

Hi Karsten,

Another option could be using 2 TSmoothing functions, one for the High Line and one for the Low line. The Smoothing function, however, uses more points internally.
Here it is an example:

Code: Select all

uses Series, ErrorBar, TeeSpline, TeeSeriesBandTool;

procedure TForm1.FormCreate(Sender: TObject);
var HighLow: THighLowSeries;
    Fast1, Fast2, dummy: TFastLineSeries;
    Smooth1, Smooth2: TSmoothingFunction;
    SeriesBand1: TSeriesBandTool;
begin
  Chart1.View3D:=false;
  Chart1.Legend.Visible:=false;

  HighLow:=Chart1.AddSeries(THighLowSeries) as THighLowSeries;
  HighLow.FillSampleValues();
  HighLow.Brush.Style:=bsSolid;

  Smooth1:=TSmoothingFunction.Create(self);
  Smooth2:=TSmoothingFunction.Create(self);

  Fast1:=Chart1.AddSeries(TFastLineSeries) as TFastLineSeries;
  Fast2:=Chart1.AddSeries(TFastLineSeries) as TFastLineSeries;
  dummy:=TFastLineSeries.Create(self);
  Fast1.FunctionType:=Smooth1;
  Fast2.FunctionType:=Smooth2;
  Fast1.Color:=clBlack;
  Fast2.Color:=clBlack;

  dummy.XValues.Value:=HighLow.XValues.Value;
  dummy.YValues.Value:=HighLow.LowValues.Value;
  dummy.XValues.Count:=HighLow.XValues.Count;
  dummy.YValues.Count:=HighLow.YValues.Count;

  Fast1.DataSource:=HighLow;
  Fast2.DataSource:=dummy;

  HighLow.Active:=false;

  SeriesBand1:=Chart1.Tools.Add(TSeriesBandTool) as TSeriesBandTool;
  SeriesBand1.Series:=Fast1;
  SeriesBand1.Series2:=Fast2;
  SeriesBand1.Brush.BackColor:=HighLow.Color;
end;
