Min Max Axe X

[Menant.D]

Hello,
the min and max haven"t good value when a serie is empty.

[Yeray]

Hello,

I'm not sure to see the problem. Could you please expand?

[Menant.D]

Hello,

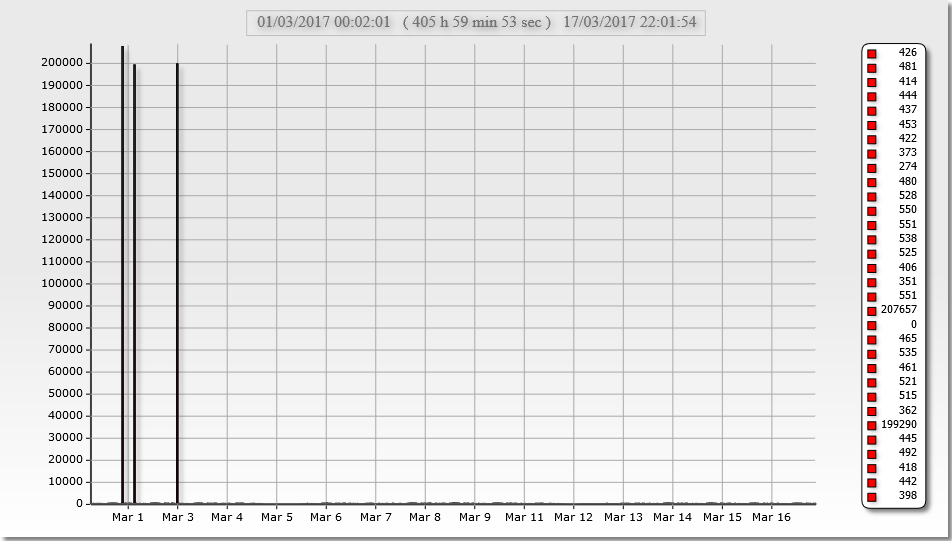

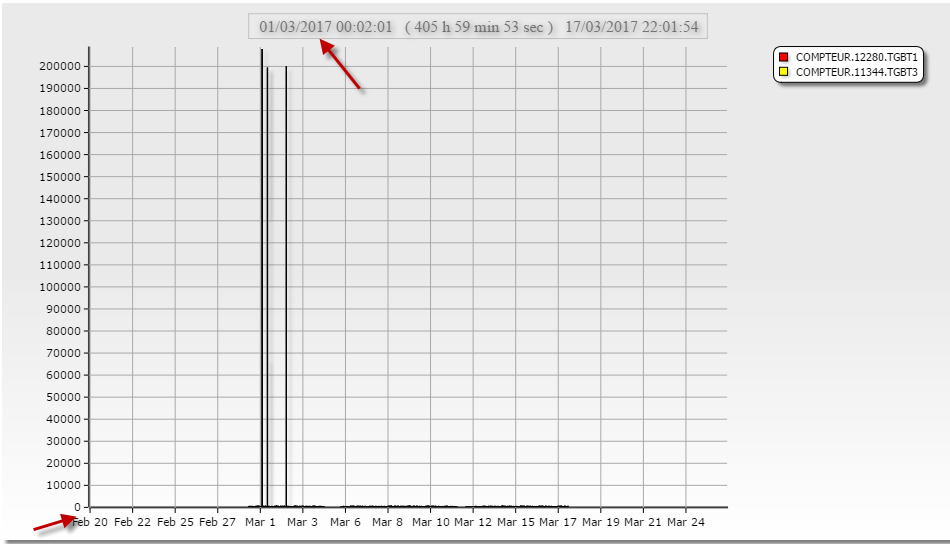

le graphic should start at Mar 1 instead of Feb 20.
There's no data between Feb 20 and Mar 1

[Menant.D]

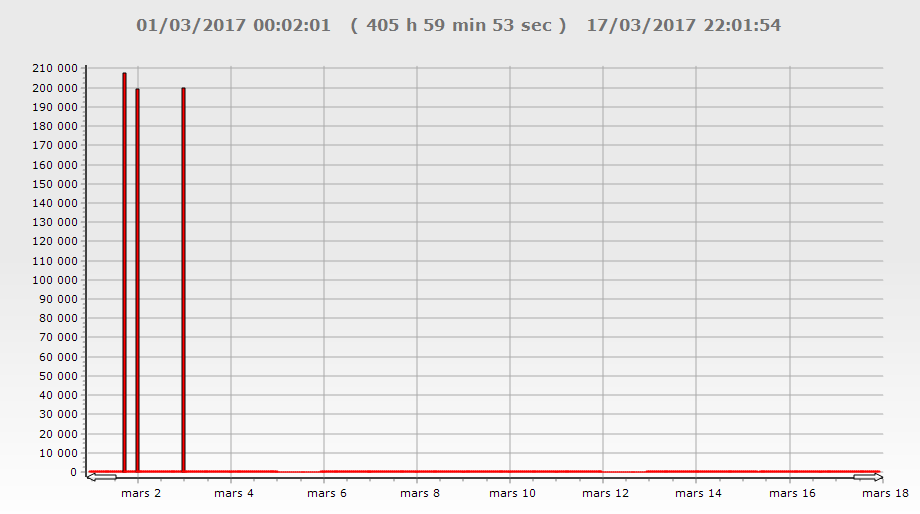

I should have the same bottom axe value of the vlc graph.

[Yeray]

Hello,

I could reproduce the problem in a simple example so I've added it to the public tracker:
http://bugs.teechart.net/show_bug.cgi?id=1853

As a workaround you can add this to manually set the axis range:

Code: Select all

  Chart1.axes.bottom.setMinMax(Series1.minXValue(), Series1.maxXValue());

[Marc]

The problem that causes the offset of the first plotted value in this chart is the presence of a second series that has no values; Series3.

If Series3 code is commented, or not added to the chart (until needed) then the plot is correct.


Regards,
Marc Meumann

[Marc]

An internal fix to the teeChart for javascript code to avoid this issue. It'll be made available with the next update (imminent).

Regards,
Marc
