MaksTip

[Rousseau]

Hi,

I think this is not possible but I ask the question anyway. I have two series stacked. I created the tcMarksTip tool and the marks on the top are visible. I would like to display two diffetent values on the each marks (on tcMarksTip tool = value, on marks = total of two series). Is it possible to do something like that ?


Thank you


[Yeray]

Hi Rousseau,

Yes, if I understand well this example is doing what you are trying to achieve:

Code: Select all

Private Sub Form_Load()
  TChart1.AddSeries scBar
  TChart1.AddSeries scBar

  TChart1.Series(0).Add 3, "", clTeeColor
  TChart1.Series(0).Add 5, "", clTeeColor
  TChart1.Series(0).Marks.Visible = False

  TChart1.Series(1).Add 4, "", clTeeColor
  TChart1.Series(1).Add 8, "", clTeeColor

  TChart1.Series(0).asBar.MultiBar = mbStacked

  TChart1.Tools.Add tcMarksTip

  RecalcTotals
End Sub

Private Sub RecalcTotals()
  Dim SeriesIndex, ValueIndex As Integer
  Dim total As Double

  For ValueIndex = 0 To TChart1.Series(0).Count - 1
    total = 0
    For SeriesIndex = 0 To TChart1.SeriesCount - 1
      total = total + TChart1.Series(SeriesIndex).YValues.Value(ValueIndex)
    Next SeriesIndex
    TChart1.Series(TChart1.SeriesCount - 1).PointLabel(ValueIndex) = Str$(total)
  Next ValueIndex
End Sub

[Rousseau]

Hi Yeray,

It's not exactly what I'm trying to do.

There are some screenshot.

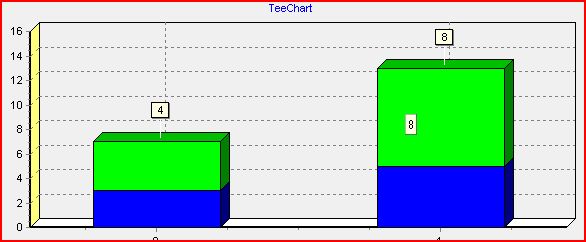

Before to call RecalcTotals.

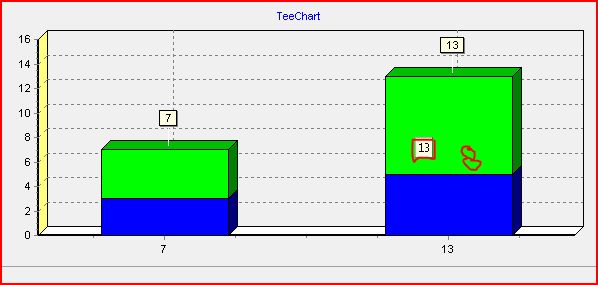

After to call RecalcTotals.


The values display with the tcMarksTip change for the total. I try to display each values ( Value of serie(0), Value of serie(1), total of two series).

[Yeray]

Hi Rousseau,

Excuse me, I forgot one line at Form_Load method, after adding the MarksTip tool:

Code: Select all

TChart1.Tools.Items(0).asMarksTip.Style = smsValue

[Rousseau]

thanks, that's work exactly as I wanted.
