Hi,

I am using TChart Version 5 in Visual Basis.
I can't find StretchDraw Method in this version.

Can you give me some other solution to fix this.

CS

I tried to use Annotation but I am not able to plot Annotation in the middle of the points. It works fine when I run the cod eand view the output but when I Export that image to jpeg the points are not on the same Location. Also I have attached both the screenshot. Following is Code whcih I am using...

Hi ,

version 5 in which I don't see tcRectangle and TCommander

used "TeeChart5Activex.exe" for installation. We are calling the tchart componets from VB 6.

Thanks
CS

I have requirement where I want to draw Rectangle around a text which I am plotting with help from you previously.

Can you help on this ?

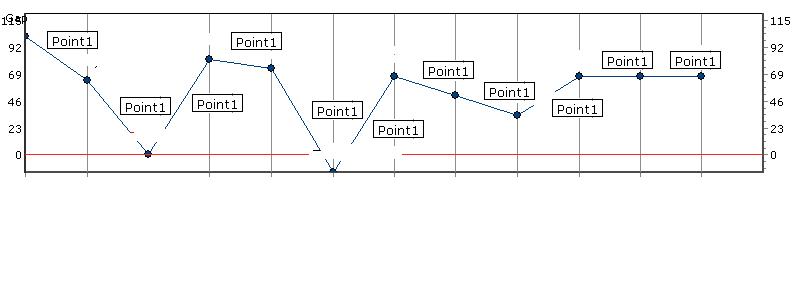

Also I need to draw the text in between two point. I have attached attachment for more details.

Values used for this :

Thanks,
CS

I have a requirement where I need to add additional Text on Top Axis.

Can you suggest me a better way to do this.

Thanks, CS

Hi,

With the Code you provided I can plot the text in between the points.

Can I cange the Font of the Text which I am plotting.

Also I want to draw a rectangle or square around this label and need an ability to set the color of the Border.

Thanks CS

Hi,

I have requirement in which I need to give different colors to Grid Lines in Left Axis.


Can you help me on this ?

Thanks,
CS

Hi,

I am Tchart5x user.

I have a requirement in which I need to show the point labels in different fonts.
I am able to set the different colors using .Series(0).PointColor(0) property.

Is there any way to set different fonts for the points ?


Thanks,
Kailas

Hi Yeray,

version 5.

used "TeeChart5Activex.exe" for installation. We are calling the tchart componets from VB 6.

Thanks
CS

Hi Yeray,

In my version I am not getting ".Left " and ".Top " With TChart1.Tools.Items(i).asAnnotation

Various property I can see are ".Position", ".Text", ".Shape". Is there any other way to set the position.
Thanks
CS

I need to get two things in my Line graph. Attached is a sample to show what I am looking for. 1. Is it possible to have label in between the points? In my eg:- lables like "AAA","BBB" etc. 2. To have labels in my X-axis (I need to put text as labels). In my eg: - "Start","Point1","Point2" etc. If I...

Hi Can I make the line smooth. I tried the following things. .Series(0).asLine.LinePen.Width = 2 .Series(0).asLine.LinePen.Style = psSolid .Series(0).asLine.LinePen.EndStyle = esFlat .Series(0).asLine.LineBrush = bsSolid .Series(0).asLine.Brush.Style = bsSolid but it is not working. In Attached file...

Can I set the scale for axis. For eg:- If I say as With .Axis.Left .SetMinMax -105.22 , 130 Then the dll itself sets the scale as 20. Which makes my bubble size small as in the attached image. I want to set the Y axis to have a scale of 50. so that the values in y-axis will be some thing like -100,-...

Thanks Yeray. It worked.

Hi,

I am using TeeChart Pro 5.0.
I need to draw one horizontal dotted lines in my line graph from the point 0 in Y- axis. I have attached one image.

Can you tell me how can I do this.
